California: Beauty of Tectonic Proportions

Big Sur Coastline. Photo by David Iliff.
Big Sur Coastline. Photo by David Iliff.

Plate Tectonics

California’s landscape is shaped in large part by plate tectonics, and in particular, the movement of the North American, Pacific, and Farallon plates over the past 150 million years. The existence of our coastal mountains, large central valley, and Sierra Nevada Mountains (to focus on the state’s main features) are due primarily to the movements of these three plates. You have probably heard of the North American Plate (almost all of North America), and the Pacific Plate (most of the Pacific Ocean). But you may not have heard of the Farallon Plate, which was a different large plate in between the Pacific and the North American Plates from about 150 to 25 million years ago.

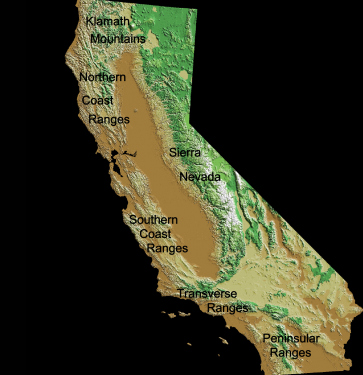

The major mountain ranges in California. The Central Valley is the brown elongated feature in the center of most of the state. Image courtesy USGS.
The major mountain ranges in California. The Central Valley is the brown elongated feature in the center of most of the state. Image courtesy USGS.

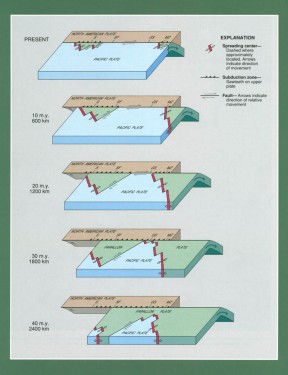

Movements of the North American, Farallon, and Pacific plates, assuming a constant relative motion of 6 cm/yr parallel to the San Andreas fault (modified from Atwater, 1970). Image courtesy USGS.
In the oldest (bottom) image you can see a lot of the Farralon Plate (green). By the top image, all of the Farralon Plate along California has been subducted under the North American Plate. This left the North American and Pacific plates in direct contact and gave rise to the San Andreas Fault system. The green piece of the Farralon plate that is left is the Oregon and Washington coast – where there is still currently subduction – and the Cascade Volcanic Chain! Image courtesy USGS.

The Farallon Plate was subducted under (went underneath) the North American Plate. As it was subducted, the accumulated sediments on the top of the Farallon Plate were scraped onto the North American Plate, creating much of the present day coastal mountain ranges.

The Sierra is Born

As the subducting Farallon Plate plunged deep beneath the North American Plate, it melted and created an inland volcanic chain. By about 60-70 million years ago the deep centers of these volcanoes had cooled and were beginning to be uplifted; they formed the present day granites of the Sierra Nevada.

A long with the volcanic chain you get a basin in front of them and this basin filled with sediment and became California’s Central Valley.

Schematic of a subduction zone similarto the one that created California's geography. The trench became the Central Valley. The magma core of the volcanic arc became the Sierra Nevada mountain chain. Photo courtesy
Schematic of a subduction zone similar to the one that created California’s geography. The trench became the Central Valley. The magma core of the volcanic arc became the Sierra Nevada mountain chain. Photo courtesy
Sierran Granite at the base of the switchbacks on the Mount Whitney Trail, next to High Camp. Sierra Nevada, California.. Photo by Justin Johnson.
Sierran Granite. This was once magma deep inside a volcanic chain much like today’s Cascade Volcanic Chain in Washington and Oregon. Photo by Justin Johnson.

Creation of the San Andreas Fault

By about 25-30 million years ago the Farallon Plate and the spreading center that created it were entirely subducted. This left the Pacific Plate in contact with the North American Plate. Subduction stopped and the San Andreas Fault was born. The movement between this new contact was mostly side-to-side with the Pacific Plate heading northwest and the North American Plate heading southeast. Technically it is called a right-lateral strike-slip fault.

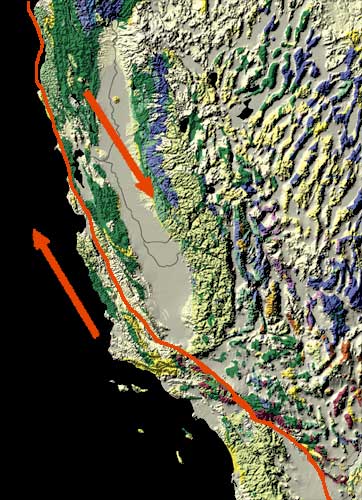

The main trace of the San Andeas Fault in California. Image courtesy USGS.
The main trace of the San Andreas Fault in California. Image courtesy USGS.

The San Andreas Fault is part of a complex system of several faults. Its motion is not just side-to-side (at an average 2 inches per year) but also involves steady uplift of the North American Plate relative to the Pacific Plate.

In Santa Cruz, my home turf, we are on what is called the Salinian Block, a chunk of granite brought northward, and also upward, by the San Gregorio and San Andreas faults. Much of this transport happened during the Miocene while the present day Salinian Block was at the bottom of the ocean accumulating sediments. Some of these sediments became the Santa Cruz Mudstone and the Purisima Formation.

Classic shore platforms and pocket beaches of the Santa Cruz Mudstone; Long Marne Lab.
Classic shore platforms and pocket beaches of the Santa Cruz Mudstone; Long Marne Lab.



  1. Sources Used

    • Farallon Plate:This Dynamic Earth. USGS Website. http://pubs.usgs.gov/gip/dynamic/Farallon.html.
    • The Geology from Santa Cruz to Point Año Nuevo—The San Gregorio Fault Zone and Pleistocene marine terraces. By Gerald Webber and Alan Allwardt. In: Stoffer PW, Gordon LC, eds. Geology and natural history of the San Francisco Bay Area: a field-trip guidebook: 2001 Fall Field Conference, National Association of Geology Teachers, Far Western Section: September 14-16. USGS Bulletin 2188; 2001:194.
    • Natural Bridges Field Trip Guide. Christie Rowe. University of California Earth Sciences Webpage. http://www.es.ucsc.edu/~crowe/structure/natbridges.html.
    • Paleosurf: The Ancient Beaches of Santa Cruz. Christie Rowe, Catherine Riihimaki. Hellatite Gallery Website. http://es.ucsc.edu/~geoclub/paleosurfpics.html.
    • The San Andreas Fault. United States Geological Survey Website. http://pubs.usgs.gov/gip/earthq3/safaultgip.html.
    • A Coast to Explore: Coastal Geology and Ecology of Central California. Miles O. Hayes. Pandion Books; 2010.
